Scientists at CERN, The European Organization for Nuclear Research, used EP79 to reduce the radiation length and connect electrically-conductive joints of the aluminum barrel and copper end caps of the Faraday cage of the ATLAS detector.
Two component, room temperature curing epoxy for bonding, sealing and coating
Key Features
- Very low volume resistivity
- Superior toughness
- Cost effectiveness
- Silver coated nickel filled system
- Superior durability, thermal cycling capabilities
- Withstands 1,000 hours 85°C/85% RH
Product Description
Master Bond EP79 is a two component, electrically conductive epoxy for high performance bonding, coating and sealing. Most significantly, it contains silver coated nickel as the conductive filler and can be considered a cost effective alternative to more standard silver filled epoxy systems. EP79 has a convenient one to one mix ratio by weight, and it cures readily at room temperature or more rapidly at elevated temperatures. To optimize its properties, the recommended cure schedule is overnight at room temperature followed by a post cure of 1-2 hours at 150-200°F. It has low linear shrinkage upon cure. It possesses reasonably good bond strength and has superior toughness, which allows the system to be subjected to thermal cycling and shocks. Due to the nature of the filler, it exhibits superb thermal conductivity. It is 100% reactive and does not contain any diluents or solvents. The volume resistivity is exceptionally low—less than 0.005 ohm-cm.
EP79 can be applied readily with brush and has good flow properties. The system is conducive to thermal cycling over the exceptionally wide temperature range of 4K to +275°F, enabling it to be serviceable even in cryogenic applications. It has good chemical resistance to water, oils and fuels. Adhesion to metals, composites, glass, ceramics, vulcanized rubbers and many plastics is excellent. Parts A and B are both colored gray. Master Bond EP79 adhesive is widely used in the electronic, aerospace, computer, semiconductor and electro-optic industries, among others.
Product Advantages
- Convenient mixing: one to one ratio by weight

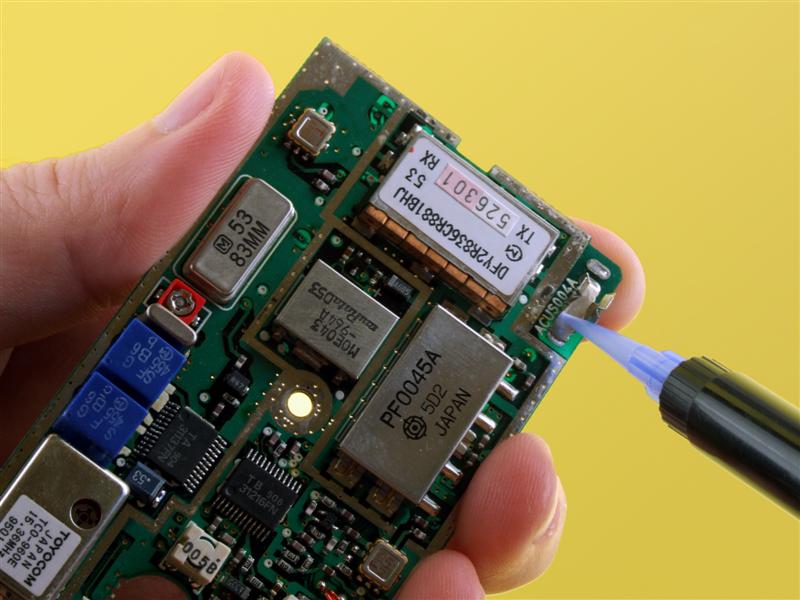

- Easy application: contact pressure only required for cure; adhesive spreads evenly and smoothly
- Versatile cure schedules: ambient temperature cures or fast elevated temperature cures as required
- Very low volume resistivity(<0.005 ohm-cm)
- Cost effective alternative to silver filled epoxy
- Good bond strength to a variety of substrates
Industrial Certifications
1,000 Hours at 85°C/85% RH
Meets EU Directive 2015/863
Packaging
Jars
Premixed & Frozen Syringe
EP79 is available is various sizes and units to accommodate customer's needs.
Case Studies
Visual Media
Suitable for a wide range of industries including electronics, appliances, automotive, and telecommunications, these silver coated nickel filled epoxies feature excellent electrical conductivity.
